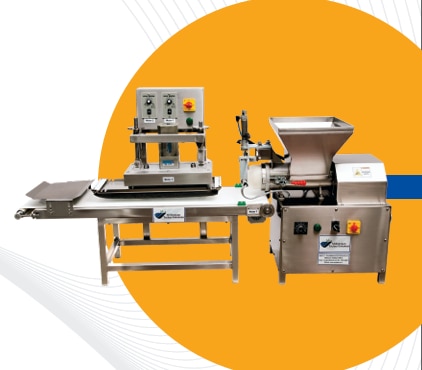

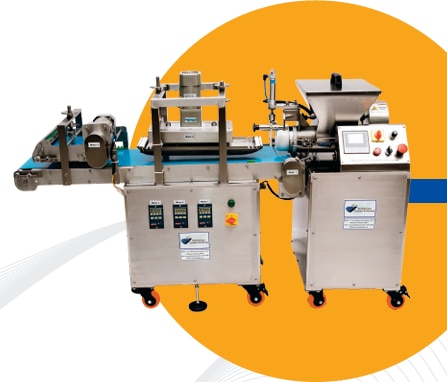

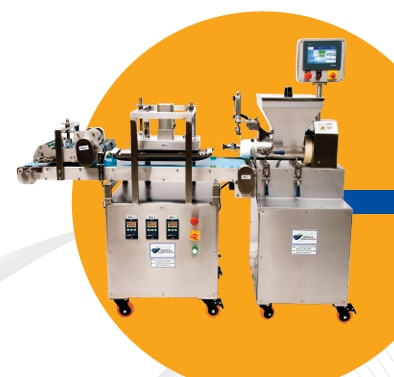

Multi Purpose DOUGH BALL CUTTING/PORTIONING, ROUNDING, ROLLING & PRESSING MACHINE

Technical Details

Material: SS 304 (Food Grade)

Portioning Size: 1 gm to 120 gm

Portioning Capacity: 4000 to 10000 pcs/hr

Production Capacity : 80 to 150 kg/hr

Hopper Capacity :12 to 15 Liters

Power Supply :220 V/110V, 1-Ph

Power Consumption : 1.4 HP

Required Air Pressure :0.8 CFM at 4 kg.

Control System : PLC/HMI Touch Screen Based

Cutting Machine Size : 27 X 25 X 56 in (LxWx

Rounding Machine Size : 7 X 22 X 45 in (LxWxH)

Machine Weight : 180Kg

Features

Removable Hopper System : : Easy washing/cleaning of the hopper; the whole hopper can be removed from the machine.

Touch Screen Interface : : For smart and easy operation.

Three Modes of Operation: : 1) Sensor-based, 2) Timer-based, 3) Bypass mode

Automated Dough Handling : Minimizes labour with taker shaft.

Shape Flexibility : : Produces various shapes with changeable dies.

Removable Blade : : Quick and easy cleaning and die replacement.

Adjustable Cutting Size : : Easily modify cutting length.

Precision Speed Control : Accurate motor speed adjustment.

Smart Counting & Alerts : Auto counts and buzzer alerts.

Multi-Use Adjustability : Adaptable for various applications.

Effortless Mobility : Equipped with 3-inch wheels.

Useful For

Sweets:-

Anguri

Rasgulla

Gulab Jamun

Peda

Cham Cham

Balushahi/Sata

Berfi

Mohanthal

Khajoor Pak

Coconut Laddu

Chena Payesh

Seedai Balls

Energy Ball

Dough Items:-

Roti Dough Ball

Puri Dough Ball

Maida Dough Ball

Potato Vada

Kachori Ball

Aloo Tikkies

Burger Patty

Harabhara Kabab

Cheese Balls

Stuffing Balls

Bakery:-

Different types of cookies

Farali Coconut
